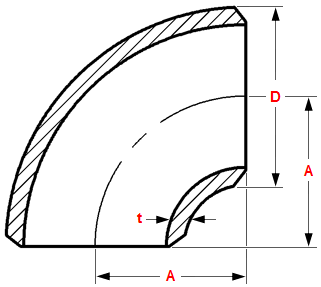

ASME B16.9对焊短半径弯头的尺寸
发布时间：2015-05-02 点击数：4219
NPS |
OD, D |
Center to End , A |
1 |
33.4 |
25 |
1 ¼ |
42.2 |
32 |
1 ½ |
48.3 |
38 |
2 |
60.3 |
51 |
2 ½ |
73 |
64 |
3 |
88.9 |
76 |
3 ½ |
101.6 |
89 |
4 |
114.3 |
102 |
5 |
141.3 |
127 |
6 |
168.3 |
152 |
8 |
219.1 |
203 |
10 |
273 |
254 |
12 |
323.8 |
305 |
14 |
355.6 |
356 |
16 |
406.4 |
406 |
18 |
457 |
457 |
20 |
508 |
508 |
22 |
559 |
559 |
24 |
610 |
610 |
