Class600法兰盖的尺寸~GB/T9124.2-2019
发布时间：2023-10-19 点击数：469

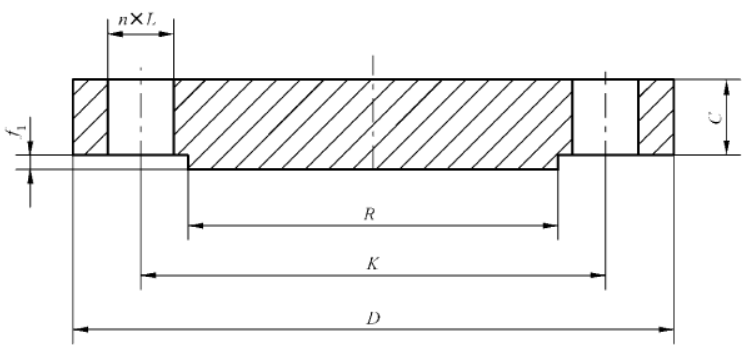

Class600法兰盖的尺寸~GB/T9124.2-2019
| 公称尺寸 | 连接尺寸 | 法兰厚度 C/ mm |
密封面 直径 R/ mm |
密封面 厚度 f1/ mm |
|||||
| DN | NPS | 法兰外径 D/ mm |
螺栓孔中心圆直径 K/ mm |
螺栓孔 直径 L/mm |
螺栓 | ||||
| 数量 n/个 |
螺纹规格 | ||||||||
| 15 | 1/2 | 95 | 66.7 | 16 | 4 | M14 | 14.3 | 34.9 | 7 |
| 20 | 3/4 | 115 | 82.6 | 19 | 4 | M16 | 15.9 | 42.9 | 7 |
| 25 | 1 | 125 | 88.9 | 19 | 4 | M16 | 17.5 | 50.8 | 7 |
| 32 | 1 ¼ | 135 | 98.4 | 19 | 4 | M16 | 20.7 | 63.5 | 7 |
| 40 | 1 ½ | 155 | 114.3 | 22 | 4 | M20 | 22.3 | 73.0 | 7 |
| 50 | 2 | 165 | 127.0 | 19 | 8 | M16 | 25.4 | 92.1 | 7 |
| 65 | 2 ½ | 190 | 149.2 | 22 | 8 | M20 | 28.6 | 104.8 | 7 |
| 80 | 3 | 210 | 168.3 | 22 | 8 | M20 | 31.8 | 127.0 | 7 |
| 100 | 4 | 275 | 215.9 | 26 | 8 | M24 | 38.1 | 157.2 | 7 |
| 125 | 5 | 330 | 266.7 | 29 | 8 | M27 | 44.5 | 185.7 | 7 |
| 150 | 6 | 355 | 292.1 | 29 | 12 | M27 | 47.7 | 215.9 | 7 |
| 200 | 8 | 420 | 349.2 | 32 | 12 | M30 | 55.6 | 269.9 | 7 |
| 250 | 10 | 510 | 431.8 | 35 | 16 | M33 | 63.5 | 323.8 | 7 |
| 300 | 12 | 560 | 489.0 | 35 | 20 | M33 | 66.7 | 381.0 | 7 |
| 350 | 14 | 605 | 527.0 | 39 | 20 | M36 | 69.9 | 412.8 | 7 |
| 400 | 16 | 685 | 603.2 | 42 | 20 | M39 | 76.2 | 469.9 | 7 |
| 450 | 18 | 745 | 654.0 | 45 | 20 | M42 | 82.6 | 533.4 | 7 |
| 500 | 20 | 815 | 723.9 | 45 | 24 | M42 | 88.9 | 584.2 | 7 |
| 550 | 20 | 870 | 777.7 | 48 | 24 | M45 | 95.2 | 641.4 | 7 |
| 600 | 24 | 940 | 838.2 | 51 | 24 | M48 | 101.6 | 692.2 | 7 |
