PN100法兰盖的尺寸~EN1092-1
发布时间：2016-01-31 点击数：3029
PN100法兰盖的尺寸~EN1092-1

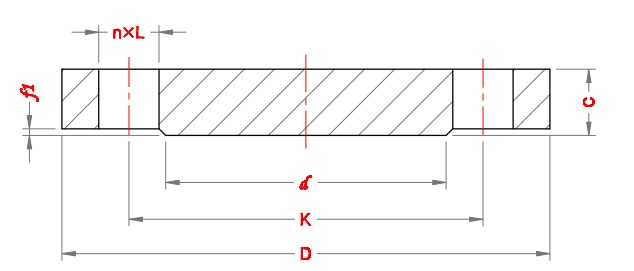

| DN | Connection Dimension | Flange thickness C/ mm |
Diameter of Raised Face d/ mm |
Height of Raised Face f1/ mm |
||||
| Outside Diameter D/ mm |
Diameter of Bolt Circle K/ mm |
Diameter of Bolt Holes L/ mm |
Bolt | |||||
| No. n/ pcs |
Size | |||||||
| 10 | 100 | 70 | 14 | 4 | M12 | 20 | 40 | 2 |
| 15 | 105 | 75 | 14 | 4 | M12 | 20 | 45 | 2 |
| 20 | 130 | 90 | 18 | 4 | M16 | 22 | 58 | 2 |
| 25 | 140 | 100 | 18 | 4 | M16 | 24 | 68 | 2 |
| 32 | 155 | 110 | 22 | 4 | M20 | 24 | 78 | 2 |
| 40 | 170 | 125 | 22 | 4 | M20 | 26 | 88 | 3 |
| 50 | 195 | 145 | 26 | 4 | M24 | 28 | 102 | 3 |
| 65 | 220 | 170 | 26 | 8 | M24 | 30 | 122 | 3 |
| 80 | 230 | 180 | 26 | 8 | M24 | 32 | 138 | 3 |
| 100 | 265 | 210 | 30 | 8 | M27 | 36 | 162 | 3 |
| 125 | 315 | 250 | 33 | 8 | M30 | 40 | 188 | 3 |
| 150 | 355 | 290 | 33 | 12 | M30 | 44 | 218 | 3 |
| 200 | 430 | 360 | 36 | 12 | M33 | 52 | 285 | 3 |
| 250 | 505 | 430 | 39 | 12 | M36 | 60 | 345 | 3 |
| 300 | 585 | 500 | 42 | 16 | M39 | 68 | 410 | 4 |
| 350 | 655 | 560 | 48 | 16 | M45 | 74 | 465 | 4 |
