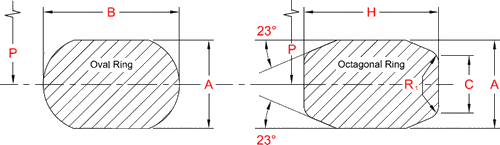

环连接面法兰用R型金属环垫的尺寸 - ASME B16.20
环连接面法兰用R型金属环垫的尺寸 - ASME B16.20适用于ASME B16.5和ASME B16.47 A法兰
环号 |
节径,P |
环宽,A |
环高 |
八角环的平面宽度,C |
圆角半径,R1 |
单重, kgs |
||
椭圆垫,B |
八角垫,H |
椭圆垫 |
八角垫 |
|||||
R-11 |
34.14 |
6.35 |
11.2 |
9.7 |
4.32 |
1.5 |
0.05 |
0.05 |
R-12 |
39.7 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.10 |
0.09 |
R-13 |
42.88 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.11 |
0.10 |
R-14 |
44.45 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.11 |
0.10 |
R-15 |
47.63 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.12 |
0.11 |
R-16 |
50.8 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.13 |
0.12 |
R-17 |
57.15 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.14 |
0.13 |
R-18 |
60.33 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.15 |
0.14 |
R-19 |
65.1 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.16 |
0.15 |
R-20 |
68.28 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.17 |
0.16 |
R-21 |
72.24 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.30 |
0.29 |
R-22 |
82.55 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.20 |
0.19 |
R-23 |
82.55 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.34 |
0.33 |
R-24 |
95.25 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.39 |
0.38 |
R-25 |
101.6 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.25 |
0.23 |
R-26 |
101.6 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.42 |
0.41 |
R-27 |
107.95 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.48 |
0.44 |
R-28 |
111.13 |
12.7 |
19.1 |
17.5 |
8.66 |
1.5 |
0.57 |
0.56 |
R-29 |
114.3 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.28 |
0.26 |
R-30 |
117.48 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.49 |
0.47 |
R-31 |
123.83 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.51 |
0.50 |
R-32 |
127 |
12.7 |
19.1 |
17.5 |
8.66 |
1.5 |
0.65 |
0.64 |
R-33 |
131.78 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.33 |
0.30 |
R-34 |
131.78 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.54 |
0.53 |
R-35 |
136.53 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.57 |
0.55 |
R-36 |
149.23 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.37 |
0.33 |
R-37 |
149.23 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.62 |
0.60 |
R-38 |
157.18 |
15.88 |
22.4 |
20.6 |
10.49 |
1.5 |
1.16 |
1.14 |
R-39 |
161.93 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.67 |
0.65 |
R-40 |
171.45 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.42 |
0.39 |
R-41 |
180.98 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.75 |
0.73 |
R-42 |
190.5 |
19.05 |
25.4 |
23.9 |
12.32 |
1.5 |
1.91 |
1.89 |
R-43 |
193.68 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.48 |
0.44 |
R-44 |
193.68 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.80 |
0.78 |
R-45 |
211.15 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.88 |
0.85 |
R-46 |
211.15 |
12.7 |
19.1 |
17.5 |
8.66 |
1.5 |
1.08 |
1.06 |
R-47 |
228.6 |
19.05 |
25.4 |
23.9 |
12.32 |
1.5 |
2.30 |
2.26 |
R-48 |
247.65 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.61 |
0.56 |
R-49 |
269.88 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
1.12 |
1.09 |
R-50 |
269.88 |
15.88 |
22.4 |
20.6 |
10.49 |
1.5 |
2.00 |
1.96 |
R-51 |
279.4 |
22.23 |
28.7 |
26.9 |
14.81 |
1.5 |
3.65 |
3.71 |
R-52 |
304.8 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.75 |
0.69 |
R-53 |
323.85 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
1.36 |
1.31 |
R-54 |
323.85 |
15.88 |
22.4 |
20.6 |
10.49 |
1.5 |
2.40 |
2.35 |
R-55 |
342.9 |
28.58 |
36.6 |
35.1 |
19.81 |
2.3 |
7.36 |
7.73 |
R-56 |
381 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.94 |
0.87 |
R-57 |
381 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
1.58 |
1.53 |
R-58 |
381 |
22.23 |
28.7 |
26.9 |
14.81 |
1.5 |
4.99 |
5.05 |
R-59 |
396.88 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
0.98 |
0.91 |
R-60 |
406.4 |
31.75 |
39.6 |
38.1 |
22.33 |
2.3 |
10.48 |
10.66 |
R-61 |
419.1 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
1.74 |
1.69 |
R-62 |
419.1 |
15.88 |
22.4 |
20.6 |
10.49 |
1.5 |
3.10 |
3.04 |
R-63 |
419.1 |
25.4 |
33.3 |
31.8 |
17.3 |
2.3 |
7.35 |
7.56 |
R-64 |
454.03 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
1.12 |
1.04 |
R-65 |
469.9 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
1.95 |
1.90 |
R-66 |
469.9 |
15.88 |
22.4 |
20.6 |
10.49 |
1.5 |
3.48 |
3.42 |
R-67 |
469.9 |
28.58 |
36.6 |
35.1 |
19.81 |
2.3 |
10.12 |
10.61 |
R-68 |
517.53 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
1.28 |
1.18 |
R-69 |
533.4 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
2.21 |
2.15 |
R-70 |
533.4 |
19.05 |
25.4 |
23.9 |
12.32 |
1.5 |
5.35 |
5.28 |
R-71 |
533.4 |
28.58 |
36.6 |
35.1 |
19.81 |
2.3 |
11.43 |
12.02 |
R-72 |
558.8 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
1.38 |
1.27 |
R-73 |
584.2 |
12.7 |
19.1 |
17.5 |
8.66 |
1.5 |
2.99 |
2.93 |
R-74 |
584.2 |
19.05 |
25.4 |
23.9 |
12.32 |
1.5 |
5.87 |
5.78 |
R-75 |
584.2 |
31.75 |
39.6 |
38.1 |
22.33 |
2.3 |
15.10 |
16.01 |
R-76 |
673.1 |
7.95 |
14.2 |
12.7 |
5.23 |
1.5 |
1.66 |
1.53 |
R-77 |
692.15 |
15.88 |
22.4 |
20.6 |
10.49 |
1.5 |
5.13 |
5.03 |
R-78 |
692.15 |
25.4 |
33.3 |
31.8 |
17.3 |
2.3 |
12.29 |
12.51 |
R-79 |
692.15 |
34.93 |
44.5 |
41.4 |
24.82 |
2.3 |
22.09 |
22.57 |
R-80 |
615.95 |
7.95 |
- |
12.7 |
5.23 |
1.5 |
- |
1.41 |
R-81 |
635 |
14.3 |
- |
19.1 |
9.58 |
1.5 |
- |
3.88 |
R-82 |
57.15 |
11.13 |
- |
16 |
7.75 |
1.5 |
- |
0.23 |
R-84 |
63.5 |
11.13 |
- |
16 |
7.75 |
1.5 |
- |
0.26 |
R-85 |
79.38 |
12.7 |
- |
17.5 |
8.66 |
1.5 |
- |
0.44 |
R-86 |
90.5 |
15.88 |
- |
20.6 |
10.49 |
1.5 |
- |
0.66 |
R-87 |
100.03 |
15.88 |
- |
20.6 |
10.49 |
1.5 |
- |
0.72 |
R-88 |
123.83 |
19.05 |
- |
23.9 |
12.32 |
1.5 |
- |
1.24 |
R-89 |
114.3 |
19.05 |
- |
23.9 |
12.32 |
1.5 |
- |
1.15 |
R-90 |
155.58 |
22.23 |
- |
26.9 |
14.81 |
1.5 |
- |
2.06 |
R-91 |
260.35 |
31.75 |
- |
38.1 |
22.33 |
2.3 |
- |
6.83 |
R-92 |
228.6 |
11.13 |
17.5 |
16 |
7.75 |
1.5 |
0.94 |
0.92 |
R-93 |
749.3 |
19.05 |
- |
23.9 |
12.32 |
1.5 |
- |
7.41 |
R-94 |
800.1 |
19.05 |
- |
23.9 |
12.32 |
1.5 |
- |
7.91 |
R-95 |
857.25 |
19.05 |
- |
23.9 |
12.32 |
1.5 |
- |
8.48 |
R-96 |
914.4 |
22.23 |
- |
26.9 |
14.81 |
1.5 |
- |
12.09 |
R-97 |
965.2 |
22.23 |
- |
26.9 |
14.81 |
1.5 |
- |
12.31 |
R-98 |
1022.35 |
22.23 |
- |
26.9 |
14.81 |
1.5 |
- |
13.51 |
R-99 |
234.95 |
11.13 |
- |
16 |
7.75 |
1.5 |
- |
0.94 |
R-100 |
749.3 |
28.58 |
- |
35.1 |
19.81 |
2.3 |
- |
- |
R-101 |
800.1 |
31.75 |
- |
38.1 |
22.33 |
2.3 |
- |
- |
R-102 |
857.25 |
31.75 |
- |
38.1 |
22.33 |
2.3 |
- |
- |
R-103 |
914.4 |
31.75 |
- |
38.1 |
22.33 |
2.3 |
- |
- |
R-104 |
965.2 |
34.93 |
- |
41.4 |
24.82 |
2.3 |
- |
- |
R-105 |
1022.35 |
34.93 |
- |
41.4 |
24.82 |
2.3 |
- |
- |
P, ±0.18
A, ±0.20
B, H, +1.3, −0.5。（高度的变化不得超过公差的± 0.5）
C, ±0.20
R1, ±0.5
23°, ±0.5
