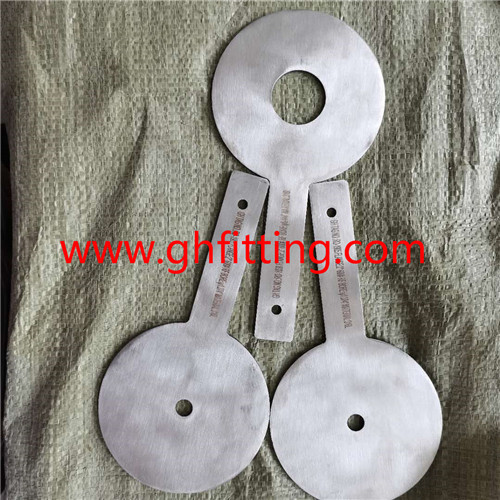

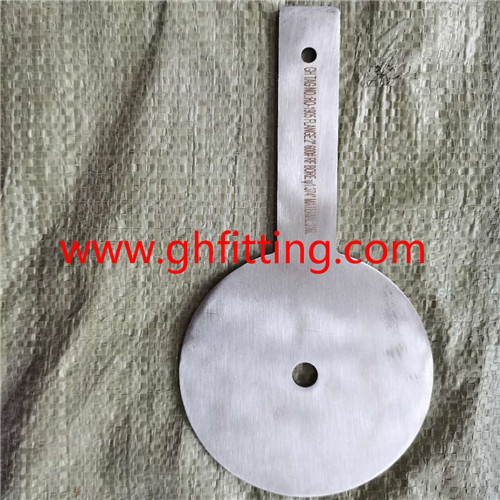

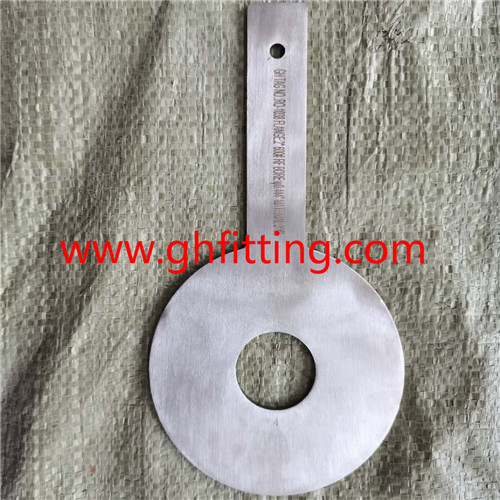

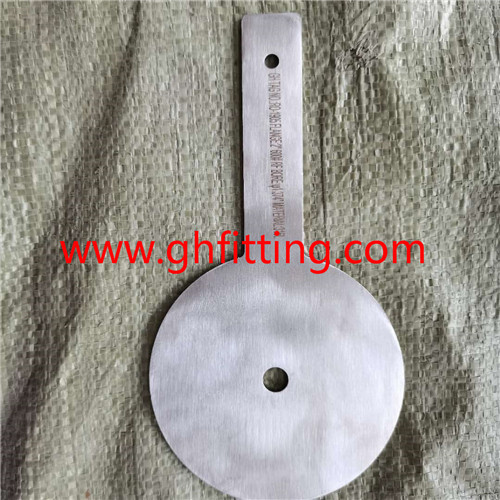

产品介绍
*限流孔板的内孔直径须由客户指定。
| 法兰尺寸 | 孔板外径A | 孔板内径 | 孔板厚度 | 手柄高B | 手柄宽C | 手柄厚 | 手柄孔径 | |
| 法兰压力 | 激光打标内容 | |||||||
| 600# | ||||||||
| 2" | 111.3 | 11.28 | 3.18 | 101.6 | 25.4 | 3.18 | 6.35 | GH TAG NO.:RO-1905 FLANGE: 2" 600# RF BORE:φ1.374" MATERIAL: 316L |
| 2" | 111.3 | 34.90 | 3.18 | 101.6 | 25.4 | 3.18 | 6.35 | GH TAG NO.:RO-1038 FLANGE: 2" 600# RF BORE:φ0.444" MATERIAL: 316L |
| 4" | 193.8 | 41.71 | 3.18 | 101.6 | 31.8 | 3.18 | 6.35 | GH TAG NO.:RO-1901 FLANGE: 4" 600# RF BORE:φ1.642" MATERIAL: 316L |
| 6" | 266.7 | 74.83 | 3.18 | 127.0 | 38.1 | 3.18 | 6.35 | GH TAG NO.:RO-1902 FLANGE: 6" 600# RF BORE:φ2.946" MATERIAL: 316L |
