产品介绍
压力容器法兰Girth Flange OD=1280, ID=1150, Thk.= 45, ASTM A105, 按图加工
压力容器法兰Girth Flange OD=1280, ID=1150, Thk.= 55, ASTM A105, 按图加工
压力容器法兰Girth Flange OD=1280, ID=1150, Thk.= 60, ASTM A105, 按图加工

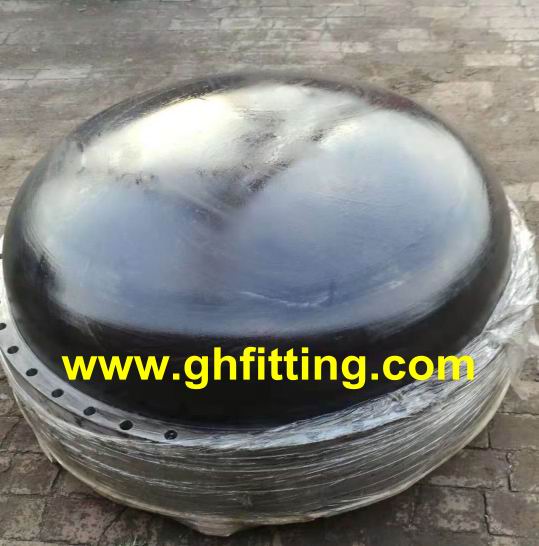

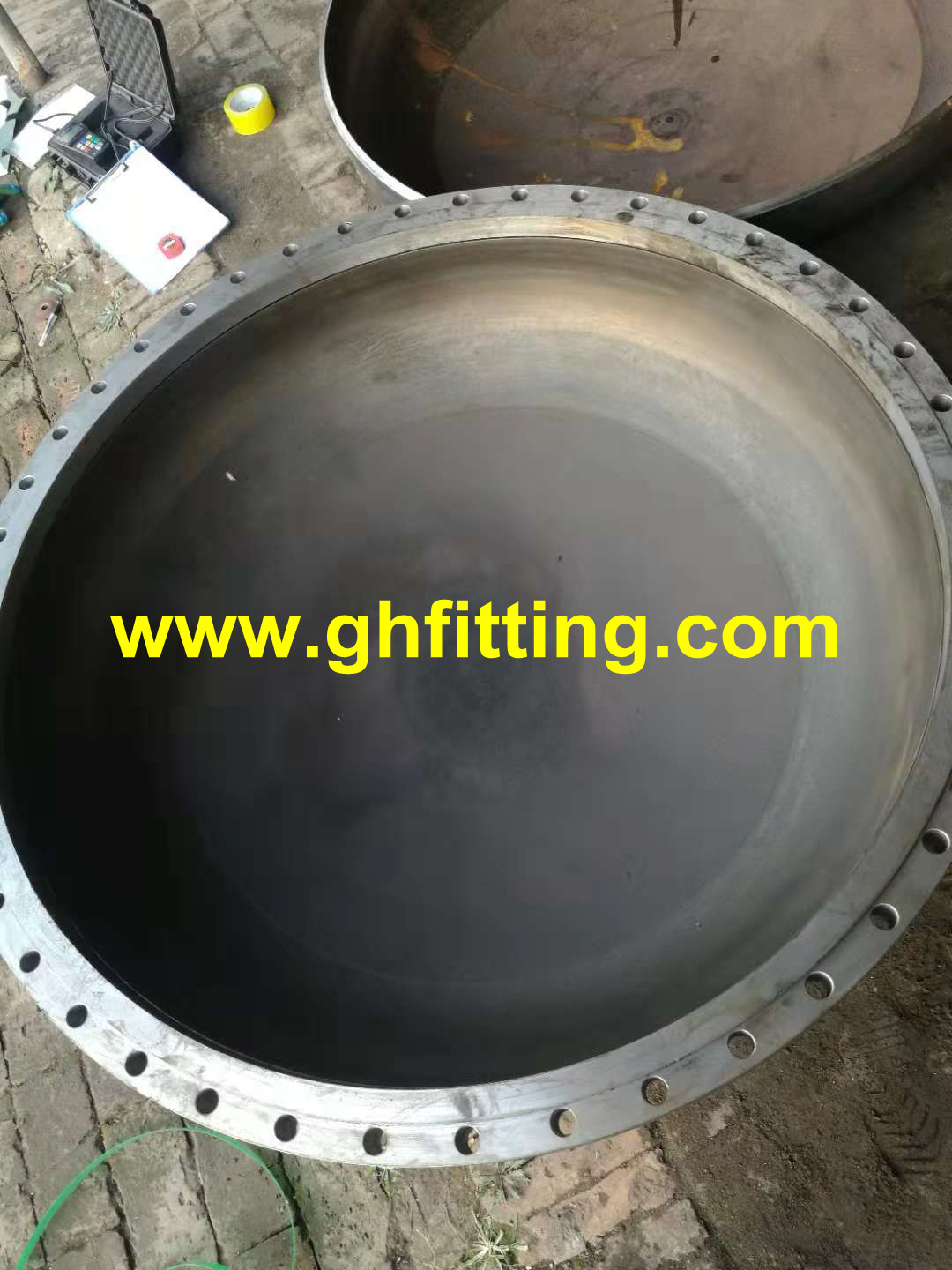

椭圆形封头. 2:1, ID=1150mm, T= 10mm (Min)
无缝, heat treated as per ASME Sec VIII Div.1, UCS-56 and time /temperature chart along with heat treatment report will be provided.

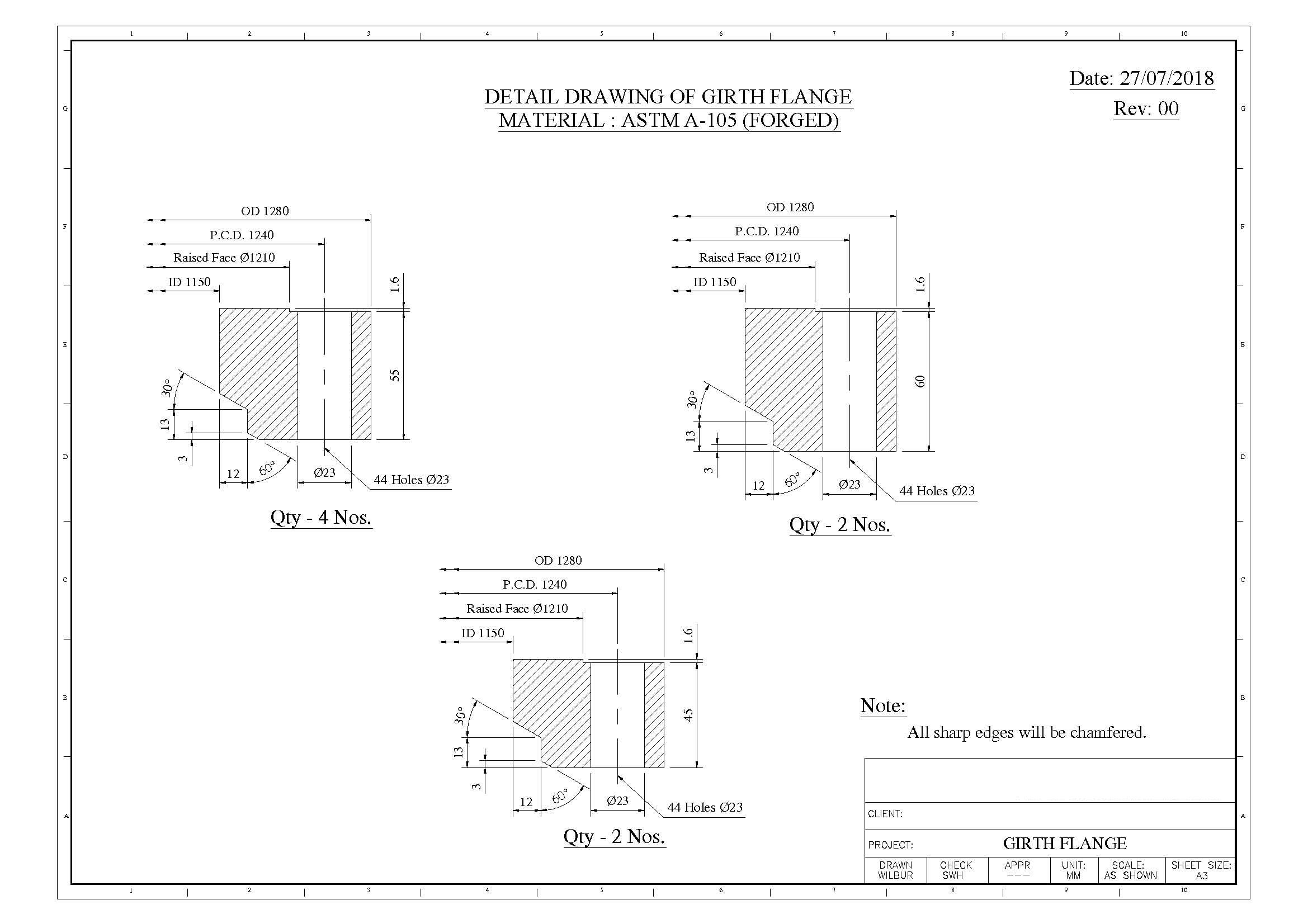

法兰设计图

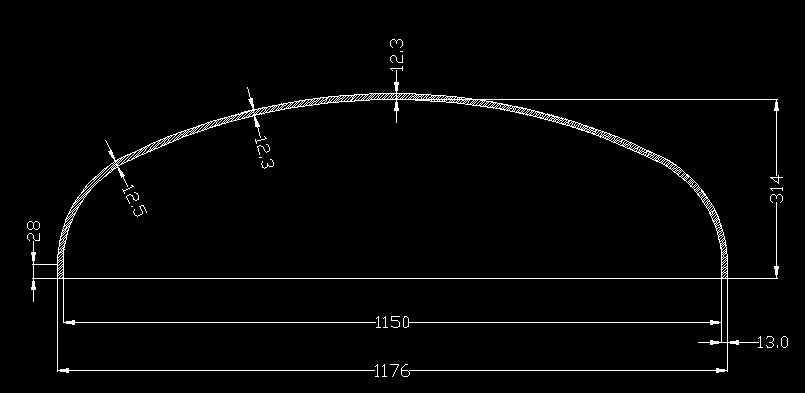

封头设计图
封头竣工图
