API 6A-TYPE-6BX 69.0MPA (10000PSI)法兰的尺寸
发布时间：2023-03-13 点击数：1473
API 6A-TYPE-6BX 69.0MPA (10000PSI)法兰的尺寸
国内标准：GB/T 22513-2013 石油天然气工业 钻井和采油设备 井口装置和采油树

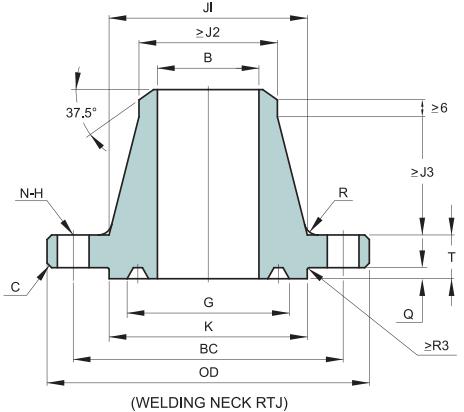

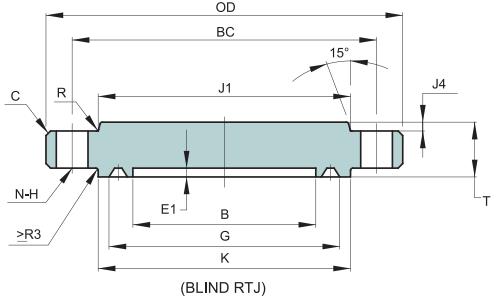

| Size | B | OD | C | E1 (MAX.) |
Q | G | K | T | J1 | J2 | J3 | J4 (MIN.) |
R | BC | N | H | BX Number |
| 1 13/16" | 46.8 | 185 | 3 | 6.1 | 5.56 | 77.77 | 105 | 42.1 | 88.9 | 65.1 | 48.5 | 10 | 146.1 | 8 | 23 | 151 | |
| 2 1/16" | 53.2 | 200 | 3 | 6.4 | 5.95 | 86.23 | 111 | 44.1 | 100.0 | 74.7 | 51.6 | 10 | 158.8 | 8 | 23 | 152 | |
| 2 9/16" | 65.9 | 230 | 3 | 7.2 | 6.75 | 102.77 | 132 | 51.2 | 120.7 | 92.1 | 57.2 | 10 | 184.2 | 8 | 26 | 153 | |
| 3 1/16" | 78.6 | 270 | 3 | 8.1 | 7.54 | 119.00 | 152 | 58.4 | 142.1 | 110.2 | 63.5 | 10 | 215.9 | 8 | 29 | 154 | |
| 4 1/16" | 104.0 | 315 | 3 | 8.9 | 8.33 | 150.62 | 185 | 70.3 | 182.6 | 146.1 | 73.1 | 10 | 258.8 | 8 | 32 | 155 | |
| 5 1/8" | 131.0 | 360 | 3 | 9.5 | 9.53 | 176.66 | 221 | 79.4 | 223.8 | 182.6 | 81.0 | 6.4 | 10 | 300.0 | 12 | 32 | 169 |
| 7 1/16" | 180.2 | 480 | 6 | 11.1 | 11.11 | 241.83 | 302 | 103.2 | 301.6 | 254.0 | 95.3 | 9.7 | 16 | 403.2 | 12 | 42 | 156 |
| 9" | 229.4 | 550 | 6 | 12.7 | 12.70 | 299.06 | 359 | 123.9 | 374.6 | 327.1 | 93.7 | 9.7 | 16 | 476.3 | 16 | 42 | 157 |
| 11" | 280.2 | 655 | 6 | 14.3 | 14.29 | 357.23 | 429 | 141.3 | 450.9 | 400.1 | 103.2 | 14.2 | 16 | 565.2 | 16 | 48 | 158 |
| 13 5/8" | 346.9 | 770 | 6 | 15.9 | 15.88 | 432.64 | 518 | 168.3 | 552.5 | 495.3 | 114.3 | 17.5 | 16 | 673.1 | 20 | 51 | 159 |
| 16 3/4" | 426.2 | 870 | 6 | 8.3 | 8.33 | 478.33 | 576 | 168.3 | 655.6 | 601.7 | 76.2 | 30.2 | 16 | 776.3 | 24 | 51 | 162 |
| 18 3/4" | 477.0 | 1040 | 6 | 18.3 | 18.26 | 577.90 | 697 | 223.1 | 752.5 | 674.7 | 155.6 | 25.4 | 16 | 925.5 | 24 | 61 | 164 |
| 21 1/4" | 540.5 | 1145 | 6 | 19.1 | 19.05 | 647.88 | 781 | 241.3 | 847.7 | 762.0 | 165.1 | 31.8 | 21 | 1022.4 | 24 | 67 | 166 |
