API 6A-TYPE-6BX 103.5MPA (15000PSI)法兰的尺寸
发布时间：2023-03-13 点击数：1123
API 6A-TYPE-6BX 103.5MPA (15000PSI)法兰的尺寸
国内标准：GB/T 22513-2013 石油天然气工业 钻井和采油设备 井口装置和采油树

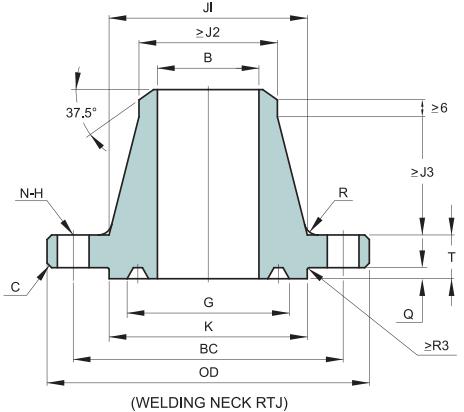

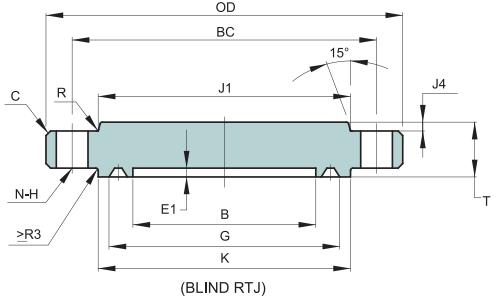

| Size | B | OD | C | E1 (MAX.) |
Q | G | K | T | J1 | J2 | J3 | J4 (MIN.) |
R | BC | N | H | BX Number |
| 1 13/16" | 46.8 | 210 | 3 | 6.0 | 5.56 | 77.77 | 106 | 45.3 | 97.6 | 71.4 | 47.6 | 10 | 160.3 | 8 | 26 | 151 | |
| 2 1/16" | 53.2 | 220 | 3 | 6.4 | 5.95 | 86.23 | 114 | 50.8 | 111.1 | 82.5 | 54.0 | 10 | 174.6 | 8 | 26 | 152 | |
| 2 9/16" | 65.9 | 255 | 3 | 7.2 | 6.75 | 102.77 | 133 | 57.2 | 128.6 | 100.0 | 57.1 | 10 | 200.0 | 8 | 29 | 153 | |
| 3 1/16" | 78.6 | 290 | 3 | 8.0 | 7.54 | 119.00 | 154 | 64.3 | 154.0 | 122.2 | 63.5 | 10 | 230.2 | 8 | 32 | 154 | |
| 4 1/16" | 104.0 | 360 | 3 | 8.8 | 8.33 | 150.62 | 194 | 78.6 | 195.3 | 158.7 | 73.0 | 10 | 290.5 | 8 | 39 | 155 | |
| 5 1/8" | 131.0 | 420 | 3 | 9.5 | 9.53 | 176.66 | 225 | 98.5 | 244.5 | 200.0 | 81.8 | 6.4 | 16 | 342.9 | 12 | 42 | 169 |
| 7 1/16" | 180.2 | 505 | 6 | 11.1 | 11.11 | 241.83 | 305 | 119.1 | 325.4 | 276.2 | 92.1 | 7.9 | 16 | 428.6 | 16 | 42 | 156 |
| 9" | 229.4 | 650 | 6 | 12.7 | 12.70 | 299.06 | 381 | 146.1 | 431.8 | 349.2 | 123.8 | 14.2 | 16 | 552.4 | 16 | 51 | 157 |
| 11" | 280.2 | 815 | 6 | 14.3 | 14.29 | 357.23 | 454 | 187.4 | 584.2 | 427.0 | 235.7 | 12.7 | 16 | 711.2 | 20 | 54 | 158 |
| 13 5/8" | 346.9 | 885 | 6 | 15.9 | 15.88 | 432.64 | 541 | 204.8 | 595.3 | 528.6 | 114.3 | 17.5 | 25 | 771.5 | 20 | 61 | 159 |
| 18 3/4" | 477.0 | 1160 | 6 | 18.3 | 18.26 | 577.90 | 722 | 255.6 | 812.8 | 730.2 | 155.6 | 35.1 | 25 | 1016.0 | 20 | 80 | 164 |
