Class150(PN20)法兰盖的尺寸 - HG/T 20615-2009
发布时间：2022-11-21 点击数：1184

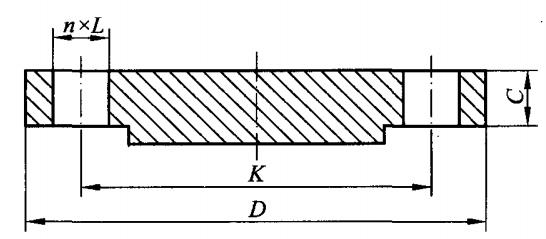

Class150(PN20)法兰盖的尺寸 - HG/T 20615-2009
| DN | NPS | 法兰外径，D | 螺栓孔中心圆直径，K | 螺栓孔直径，L | 螺栓规格 | 螺栓孔数 | 密封面直径 | 密封面高度 | 法兰厚度，C |
| 15 | 1/2 | 90 | 60.3 | 16 | M14 | 4 | 34.9 | 2 | 9.6 |
| 20 | 3/4 | 100 | 69.9 | 16 | M14 | 4 | 42.9 | 2 | 11.2 |
| 25 | 1 | 110 | 79.4 | 16 | M14 | 4 | 50.8 | 2 | 12.7 |
| 32 | 1 ¼ | 115 | 88.9 | 16 | M14 | 4 | 63.5 | 2 | 14.3 |
| 40 | 1 ½ | 125 | 98.4 | 16 | M14 | 4 | 73.0 | 2 | 15.9 |
| 50 | 2 | 150 | 120.7 | 18 | M16 | 4 | 92.1 | 2 | 17.5 |
| 65 | 2 ½ | 180 | 139.7 | 18 | M16 | 4 | 104.8 | 2 | 20.7 |
| 80 | 3 | 190 | 152.4 | 18 | M16 | 4 | 127.0 | 2 | 22.3 |
| 100 | 4 | 230 | 190.5 | 18 | M16 | 8 | 157.2 | 2 | 22.3 |
| 125 | 5 | 255 | 215.9 | 22 | M20 | 8 | 185.7 | 2 | 22.3 |
| 150 | 6 | 280 | 241.3 | 22 | M20 | 8 | 215.9 | 2 | 23.9 |
| 200 | 8 | 345 | 298.5 | 22 | M20 | 8 | 269.9 | 2 | 27.0 |
| 250 | 10 | 405 | 362.0 | 26 | M24 | 12 | 323.8 | 2 | 28.6 |
| 300 | 12 | 485 | 431.8 | 26 | M24 | 12 | 381.0 | 2 | 30.2 |
| 350 | 14 | 535 | 476.3 | 30 | M27 | 12 | 412.8 | 2 | 33.4 |
| 400 | 16 | 595 | 539.8 | 30 | M27 | 16 | 469.9 | 2 | 35.0 |
| 450 | 18 | 635 | 577.9 | 33 | M30 | 16 | 533.4 | 2 | 38.1 |
| 500 | 20 | 700 | 635.0 | 33 | M30 | 20 | 584.2 | 2 | 41.3 |
| 600 | 24 | 815 | 749.3 | 36 | M33 | 20 | 692.2 | 2 | 46.1 |
