Class600(PN110)法兰盖的尺寸 - HG/T 20615-2009
发布时间：2022-11-21 点击数：717

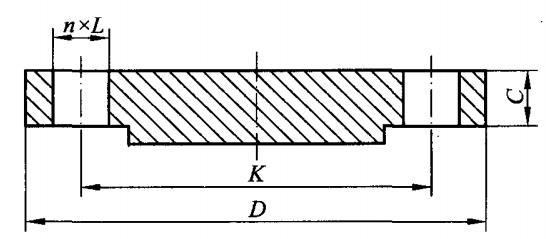

Class600(PN110)法兰盖的尺寸 - HG/T 20615-2009
| DN | NPS | 法兰外径，D | 螺栓孔中心圆直径，K | 螺栓孔直径，L | 螺栓规格 | 螺栓孔数 | 密封面直径 | 密封面高度 | 法兰厚度，C |
| 15 | 1/2 | 95 | 66.7 | 16 | M14 | 4 | 34.9 | 7 | 14.3 |
| 20 | 3/4 | 115 | 82.6 | 18 | M16 | 4 | 42.9 | 7 | 15.9 |
| 25 | 1 | 125 | 88.9 | 18 | M16 | 4 | 50.8 | 7 | 17.5 |
| 32 | 1 ¼ | 135 | 98.4 | 18 | M16 | 4 | 63.5 | 7 | 20.7 |
| 40 | 1 ½ | 155 | 114.3 | 22 | M20 | 4 | 73.0 | 7 | 22.3 |
| 50 | 2 | 165 | 127.0 | 18 | M16 | 8 | 92.1 | 7 | 25.4 |
| 65 | 2 ½ | 190 | 149.2 | 22 | M20 | 8 | 104.8 | 7 | 28.6 |
| 80 | 3 | 210 | 168.3 | 22 | M20 | 8 | 127.0 | 7 | 31.8 |
| 100 | 4 | 275 | 215.9 | 26 | M24 | 8 | 157.2 | 7 | 38.1 |
| 125 | 5 | 330 | 266.7 | 30 | M27 | 8 | 185.7 | 7 | 44.5 |
| 150 | 6 | 355 | 292.1 | 30 | M27 | 12 | 215.9 | 7 | 47.7 |
| 200 | 8 | 420 | 349.2 | 33 | M30 | 12 | 269.9 | 7 | 55.6 |
| 250 | 10 | 510 | 431.8 | 36 | M33 | 16 | 323.8 | 7 | 63.5 |
| 300 | 12 | 560 | 489.0 | 36 | M33 | 20 | 381.0 | 7 | 66.7 |
| 350 | 14 | 605 | 527.0 | 39 | M36 | 20 | 412.8 | 7 | 69.9 |
| 400 | 16 | 685 | 603.2 | 42 | M39 | 20 | 469.9 | 7 | 76.2 |
| 450 | 18 | 745 | 654.0 | 45 | M42 | 20 | 533.4 | 7 | 82.6 |
| 500 | 20 | 815 | 723.9 | 45 | M42 | 24 | 584.2 | 7 | 88.9 |
| 600 | 24 | 940 | 838.2 | 51 | M48 | 24 | 692.2 | 7 | 101.6 |
